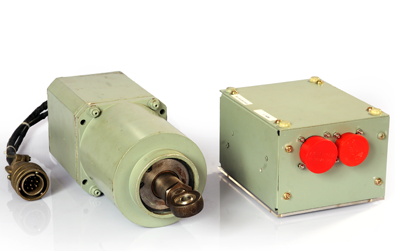

Electro Mechanical linear Actuator (EMLA)
EMLA
EMLA GCU
EMLA is a position controlled linear actuator to operate the control surface of a missile, it can also be used for gun position control. The unit is powered by a small sized BLDC motor which has high rated power of 3kW.
The unit is capable of operating at a speed of 165mm/sec, against the rated load of 1100kgs. It has got a stroke of ±30mm. The unit operates at a nominal voltage of 80VDC.
Specifications
| Peak Load | 2200 kgf |
| Stall Load | 3000 kgf |
| Rated Load | 1100 kgf at rated voltage |
| Rated Voltage | 80 ± 5 VDC |
| Speed At Rated Load | 165 mm/second |
| Stroke | ± 30 mm |
| Size | 102 x 106 x 270 mm excluding controller |
| Weight | 6.45 kg |
| Total Time of Operation | 500 second |
| Feedback Sensors | Tacho and LVDT |
