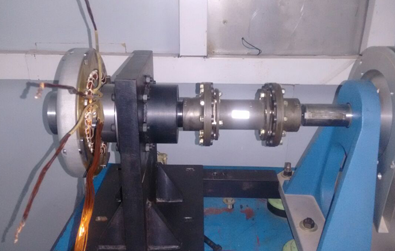

INTEGRATED STARTER GENERATOR WITH FLYWHEEL FOR UAV ENGINE
Integrated starter generator with flywheel functionality which can act as a starter motor for cranking and generating electrical power as a generator and Rotor of ISGF will also acts as flywheel for balancing the rotary engine.
Starter Specifications
| Cranking Torque | 15N-m |
| Input Voltage | 24V DC±1V |
| Starting duration | Max. 3 Sec |
| Engine speed during starting | 1200 to 1500 rpm |
| Starting Temperature | -20° to +55° |
Generator Specification
| Type | PMDC |
| Capacity | 2.2 kW @ 3500 rpm |
| Operating speed | 1600-8000 rpm |
| Voltage | 28V DC (Adjustable up to 32V DC in GCU) |
| Cooling | Self cooled |
| Dimension | Dia 214 x 70 mm length |
| Temperature | -40°C to +65°C |
| Weight | 6Kg |
